Jockey wheels

AL-KO offers the a wide range of jockey wheels, the Profi, Premium and Plus, to suit a variety of requirements,

Jockey wheel Compact 150 kg

  • Standard corrosion protection
  • Short version
  • Also available in plastic



Jockey wheel Plus 200 kg

  • High-quality corrosion protection
  • Extended...
Read more
stutzrad_premium1222433-stuetzrad-compact-150-kunststoff1222434-stuetzrad-compact-150-stahl1222437-stuetzrad-plus-hagmjh92-5rl31223614-stuetzrad-300243888-profi-500starr1224013-geklappt-12001224012-geklappt-1500242061_stuetzrad1212382_stuetzrad1366155_stuetzrad_belastet
1223638_stuetzrad-1600x800

Interested?

Click here to find a dealer

Description

AL-KO offers the a wide range of jockey wheels, the Profi, Premium and Plus, to suit a variety of requirements,

Jockey wheel Compact 150 kg

  • Standard corrosion protection
  • Short version
  • Also available in plastic



Jockey wheel Plus 200 kg

  • High-quality corrosion protection
  • Extended version
  • Smooth crank
  • Pneumatic tyre



Jockey wheel 300 kg

  • Secures crank against shaking loose
  • Thanks to welded wire clip on the outer tube, which can be hooked on



Jockey wheel Premium 300 kg

  • Extremely stable design
  • Integrated swing arm suspension
  • Wide, crowned wheel 230x80 mm with a modern design, easy to manoeuvre
  • Smooth crank
  • Crank with ergonomic shape, removable
  • Wheel is removable
  • High-quality corrosion protection
  • Ideal for use with manoeuvring systems such as the AL-KO Mammut Mover



Jockey wheel Profi 500 kg, rigid

  • High-quality corrosion protection
  • Smooth crank



Jockey wheel Profi 500 kg, semi-automatic

  • High-quality corrosion protection
  • Smooth crank
  • Welded jockey wheel flange
  • Semi-automatic pivoting support shoe



Jockey wheel Profi 500 kg, automatic

  • High-quality corrosion protection
  • Smooth crank
  • Welded jockey wheel flange
  • Fully automatic pivoting support shoe

CAUTION: not UVV tested



Jockey wheel Profi 500 kg, automatic long

  • High-quality corrosion protection
  • Smooth crank
  • Jockey wheel flange welded on
  • More adjustable stroke
  • Fully automatic pivoting support shoe

CAUTION: not UVV tested



Jockey wheel Profi 800 kg

  • Folding crank
  • High-quality corrosion protection
  • Pivoting support shoe
  • Jockey wheel flange welded on



Jockey wheel Profi 1200 kg

  • Robust
  • Pivoting support shoe



Jockey wheel Profi 1500 kg

  • Robust
  • Pivoting support shoe

Full details can be found in the catalogues:

to the catalogues

Your advantages





1222434-stuetzrad-compact-150-stahl

Jockey wheel Compact 150 kg, steel

  • Standard corrosion protection
  • Short version
  • also available in plastic
+ More...







1222437-stuetzrad-plus-hagmjh92-5rl3

Jockey wheel Plus 200 kg

  • High-quality corrosion protection
  • Extended version
  • Smooth crank
+ More...







1223614-stuetzrad-300

Jockey wheel 300 kg

  • secures crank against rattling loose thanks to welded wire clip on the outer tube
+ More...

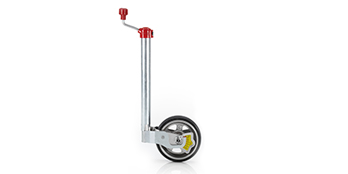

stutzrader-348x174

Jockey wheel Premium 300 kg

  • Extremely stable design
  • Integrated wheel load indicator
  • Integrated swing arm suspension
  • Wide, crowned wheel 230x80 mm with a modern design
+ More...







profi-500starr

Jockey wheel Profi 500 kg, rigid

  • High-quality corrosion protection
  • Smooth crank
+ More...

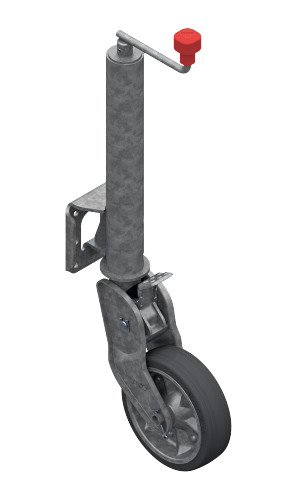

242061_stuetzrad

Jockey wheel Profi 500 kg, semi-automatic

  • High-quality corrosion protection
  • Welded jockey wheel flange
  • Semi-automatic pivoting support shoe
+ More...

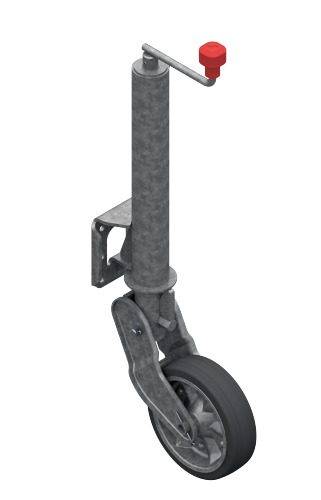

1212382_stuetzrad

Jockey wheel Profi 500 kg, automatic

  • High-quality corrosion protection
  • Welded jockey wheel flange
  • Fully automatic pivoting support shoe
+ More...

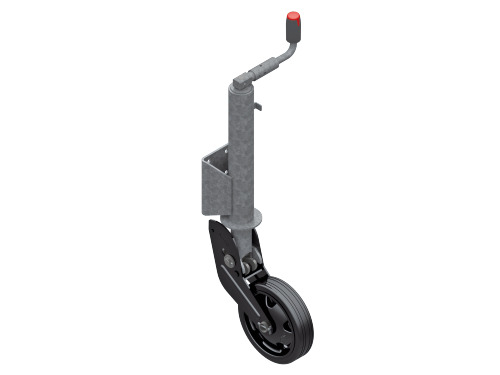

1366155_stuetzrad_belastet

Jockey wheel Profi 800 kg

  • Folding crank
  • High-quality corrosion protection
  • Pivoting support shoe
  • Jockey wheel flange welded on
+ More...







1224013-geklappt-1200

Jockey wheel Profi 1200 kg

  • Robust
  • Pivoting support shoe
+ More...







1224012-geklappt-1500

Jockey wheel Profi 1500 kg

  • Robust
  • Pivoting support shoe
+ More...



Technical data

Jockey wheel Compact
Static load capacity150 kg
Dynamic load capacity90 kg
Surface treatmentelectrogalvanised
Crankstandard
Rimplastic or sheet metal
Wheel200 x 50 solid rubber
Order no.1 222 433/434
Jockey wheel Plus
Static load capacity200 kg
Dynamic load capacity120 kg
Surface treatmenthot-dip galvanised
Crankwith thrust bearing
Rimplate
Wheel260 x 85 pneumatic tyre
Order no.1 222 438
Jockey wheel
Static load capacity300 kg
Dynamic load capacity180 kg
Surface treatmentelectrogalvanised
Crankwith thrust bearing
Rimplate
Wheel200 x 50 solid rubber
Order no.1 223 614
Premium jockey wheel
Static load capacity300 kg
Dynamic load capacity180 kg
Surface treatmenthot-dip galvanised
Crankwith thrust bearing
Rimsteel
Wheel230 x 80 solid rubber
Order no.1 221 695
Jockey wheel Profi
Static load capacity500 kg
Dynamic load capacity300 kg
Surface treatmenthot-dip galvanised
Crankwith thrust bearing
Rimsteel
Wheel200 x 50 solid rubber
Order no.242 061
Jockey wheel Profi 500 kg, automatic long
Static load capacity500 kg
Dynamic load capacity300 kg
Surface treatmenthot-dip galvanised
Crankwith thrust bearing
Rimsteel
Wheel230 x 80 solid rubber
Order no.1 223 638
Jockey wheel Profi 800 kg
Static load capacity800 kg
Dynamic load capacity
Surface treatmenthot-dip galvanised
Crankfolding
Rimsteel
Wheel260 x 65 solid rubber
Order no.1 336 155
Jockey wheel Profi 1200 kg
Static load capacity1200 kg
Dynamic load capacity
Surface treatmentprimed
Crank
Rimsteel
Wheel250 x 80 solid rubber
Order no.1 224 013
Jockey wheel Profi 1500 kg
Static load capacity1500 kg
Dynamic load capacity
Surface treatmentprimed
Crank
Rim
Wheel310 x 90 sheet metal wheel
Order no.1 224 012
Static load capacityDynamic load capacitySurface treatmentCrankRimWheelOrder no.
Jockey wheel Compact150 kg90 kgelectrogalvanisedstandardplastic or sheet metal200 x 50 solid rubber1 222 433/434
Jockey wheel Plus200 kg120 kghot-dip galvanisedwith thrust bearingplate260 x 85 pneumatic tyre1 222 438
Jockey wheel300 kg180 kgelectrogalvanisedwith thrust bearingplate200 x 50 solid rubber1 223 614
Premium jockey wheel300 kg180 kghot-dip galvanisedwith thrust bearingsteel230 x 80 solid rubber1 221 695
Jockey wheel Profi500 kg300 kghot-dip galvanisedwith thrust bearingsteel200 x 50 solid rubber242 061
Jockey wheel Profi 500 kg, automatic long500 kg300 kghot-dip galvanisedwith thrust bearingsteel230 x 80 solid rubber1 223 638
Jockey wheel Profi 800 kg800 kghot-dip galvanisedfoldingsteel260 x 65 solid rubber1 336 155
Jockey wheel Profi 1200 kg1200 kgprimedsteel250 x 80 solid rubber1 224 013
Jockey wheel Profi 1500 kg1500 kgprimed310 x 90 sheet metal wheel1 224 012
